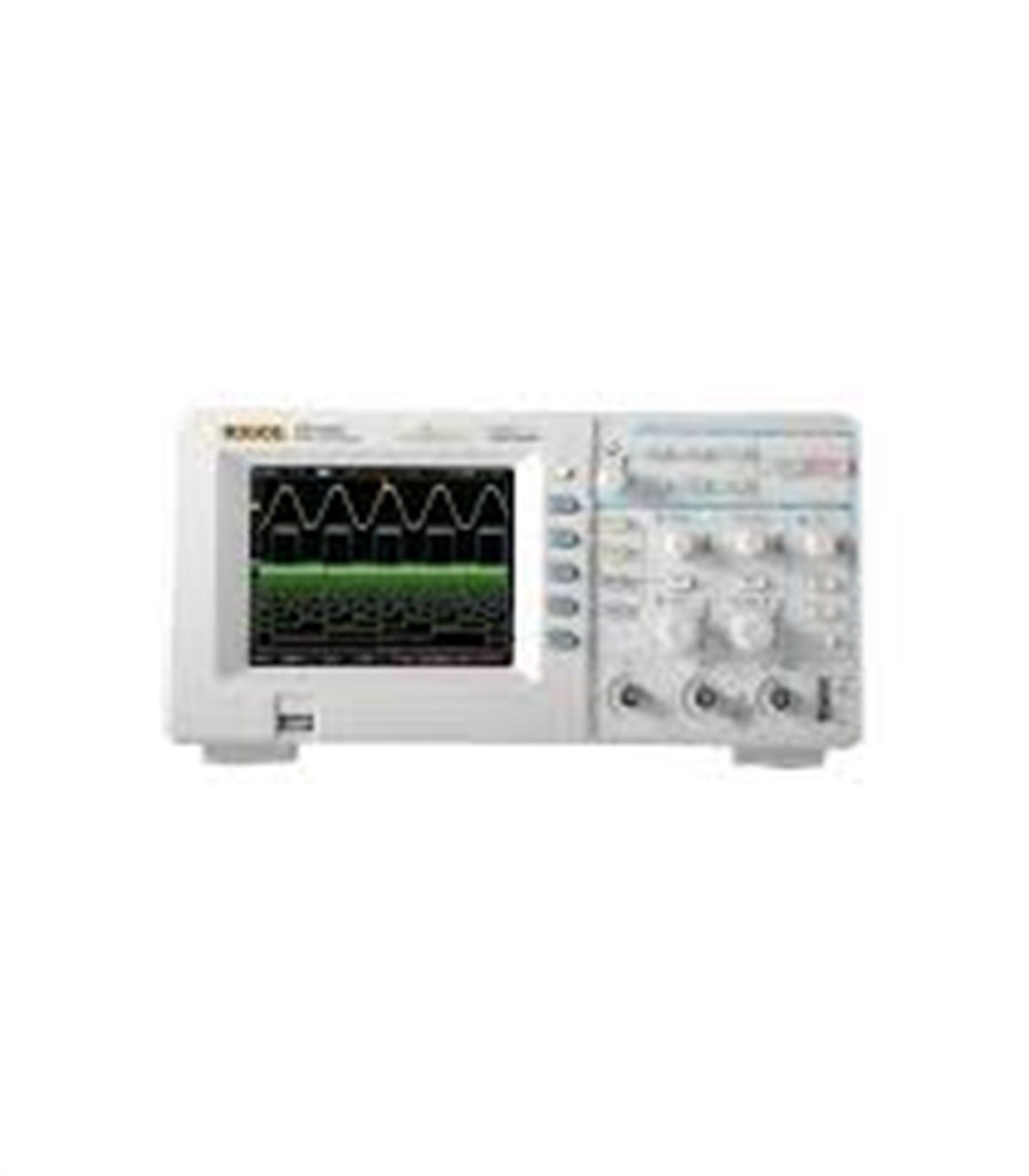

RIGOL DS 1062 C DİJİTAL HAFIZALI OSİLOSKOP
RIGOL DS 1062 C DİJİTAL HAFIZALI OSİLOSKOP

RIGOL DS 1062 C DİJİTAL HAFIZALI OSİLOSKOP (DS1062C)

Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Main Specifications: DS1062C
Channels 2
Bandwidth 60MHz
Vertical Sensitivity 2mV/div to 5V/div
Time Base 5ns/div to 50s/div
Sample Rate 400MSa/s
Equivalent Sampling 25GSa/s
Input Impedance 1 MΩ, approx. 13 pF
Input Coupling DC, AC or GND
Trigger Type Edge, Video, Pulse, Slope, Alternate
Trigger Mode Auto, Normal, Single
Trigger Source CH 1, 2, ext , ext/5 or ext(50Ω)
Horizontal Accuracy ±0.01%
Vertical Resolution 8bits
Auto Measurement Vpp, Vrms, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Overshoot, Preshoot, Freq, Period, +Width, -Width, Risetime, Falltime, +Duty, -Duty, etc.
Math FFT  +   -    x    ÷
Storage 10 Waveforms(2CH), 10 Sets
Phase diff ±3 degrees
Display TFT color, 320x234
Power 100~225VAC/40W
Net Weight 2.3Kg
Dimension (excl. handle) 303mmx154mmx133mm
Accessory Probex2(1:1/10:1), Power Cable,  User manual
