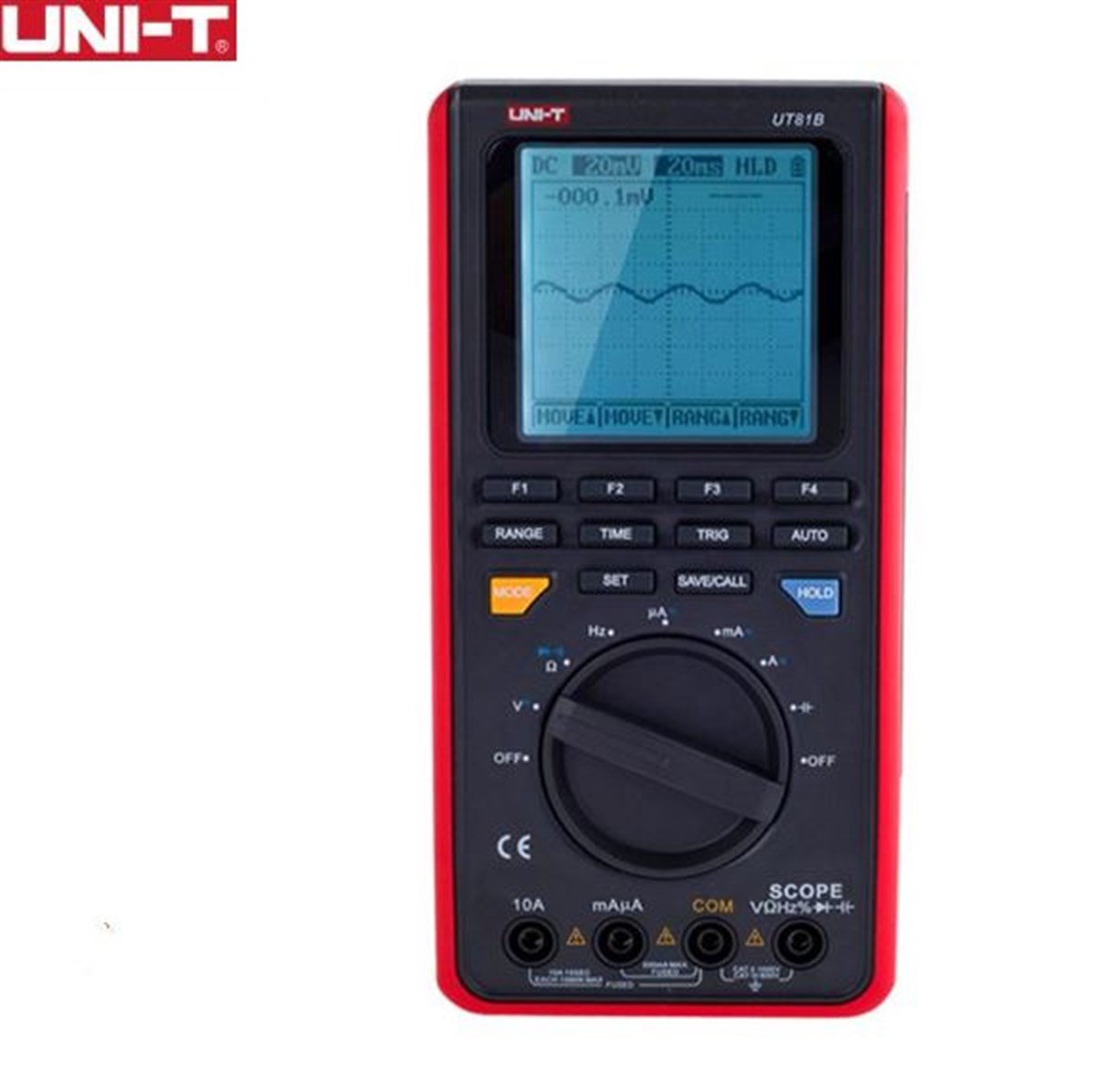

UNI-T UT81B 8 MHz El Tipi Osiloskop

UNI-T UT81B 8 MHz El Tipi Osiloskop

UNI-T UT 81B 8 MHz El Tipi Osiloskop UT81B UT-81B (UT81B)

Telefonla Sipariş

Favorilere Ekle

İstek Listeme Ekle

Karşılaştır

Fiyat Düşünce Haber Ver

Gelince Haber Ver

Tavsiye Et

Yorum Yaz

(0)

Model	UT81B
DMM Specifications	Range	Best Accuracy
DC Voltage (V)	400mV/4V/40V/400V/1000V	±(0.8%+8)
AC Voltage (V)	4V/40V/400V/750V	±(1%+15)
DC Current (A)	400?A/4000?A/40mA/400mA/4A/10A	±(1%+8)
AC Current (A)	400?A/4000?A/40mA/400mA/4A/10A	±(1.5%+8)
Resistance (?)	400?/4k?/40k?/400k?/4M?/40M?	±(1%+5)
Capacitance (F)	40nF/400nF/4?F/40?F/100?F	±(3%+8)
Frequency (Hz)	10Hz-10MHz	±(0.1%+3)
Scope Specifications	Range	Best Accuracy
Bandwidth	8MHz	?
Real-Time Sampling Rate	40MS/s	?
Vertical Accuracy	?	±(5%+1)
Input Sensitivity	20mV/div - 500V/div(1-2-5)	?
Horizontal Accuracy	?	±(0.01%+1)
Time-Base Range	100ns/div - 5s/div(1-2-5)	?
Features
Display Count	?	4000
Auto Range	?	?
Duty Cycle	0.1 ? 99.9%	?
Diode	?	?
Auto Power Off	?	?
Continuity Buzzer	?	?
Display	160 x 160 Monochrome	?
Trigger Types	Free Run/Normal/Single Shot	?
Memory	10 screens and setups	?
Contrast and Bright Setup	?	?
Low Battery Indication	?	?
USB Interface	?	?
LCD Backlight	?	?
Input Impedance for DCV	Around 10M?	?
General Characteristics
Power	1.5V Batteries (R6) X 4
LCD Size	60mm X 60 mm
Product Color	Red and grey
Product Net Weight	498g
Product Size	200mm X 100mm X 48mm
Standard Accessories	Batteries, Test Lead, Alligator Clip, USB Interface Cable, PC Software CD, BNC Probe
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	12pcs
Standard Carton Measurement	485mm × 450mm × 260mm (0.057 CBM Per Standard Carton)
Standard Carton Gross Weight	16.4kg
Optional Accessories	Scope Probe, AC Power Adaptor
